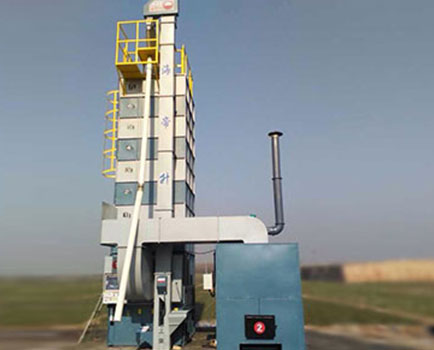

Product model：HDS-12000D-Y

Release time：2017-05-17 Browse number：173people information sources：

National agricultural subsidized product

◆ Application of smart drying technology: automatic materials loading, automatic circulation, automatic temperature control and automatic alarm.

◆ Specialized drying: rice, corn, soybean, sorghum, barley, wheat and other corns.

tel：024-85856600 85856699

Product introduction

The grain dryer developed by LIAONING HIDEAR SHENG MACHINERY CO., LTD with efforts for years can dry multiple corns, including rice, corn, barley and wheat. The dryer adopts advanced technology, has high automation, is easy to operation, has reliable performance, small noise, weak vibration, short drying duration, and saves the fuel and energy remarkably. The practice has proved that, it can save energy by about 20-25% compared with other equipment with the same drying capacity.

Such dryer has wide application scope, is convenient to combine and can set different drying sections as per different moisture elimination level of grain to meet the requirements on moisture elimination and output. The equipment has low crackle ratio and can be used to dry seeds to enhance the economic benefit.

Application range

Product features

Configuration and parameter

Item	Basic configuration and technical parameters

Model		HDS-L8000D-Y	HDS-L10000D-Y	HDS-L12000D-Y	HDS-L15000D-Y
Processing capacity (kg/ time)		8000	10000	12000	15000
Overall dimensions	Length (mm)	3636 (base size 2060)
	width (mm)	2190（base size 2060）
	Height (mm)	8080	8625	9715	10805
Overall weight (kg)		2600	2800	3000	3200
Ventilator	Form	Diagonal flow type
	Diameter (mm)	750
	Number of revolutions (rpm)	1450
Heat supply method	Form	Lance type burner/hot air/steam heat exchange
Fuel		Diesel/coal, rice chaff, biamass
Rated voltage (V)		Single phase 220/ three phases 380
Max. power (kW)		9.07
Performance	Materials loading time (min)	30-35	40-45	45-50	60-65
	Materials discharge time (min)	30-35	40-45	45-50	60-65
	Moisture elimination rate (%/h)	0.6-1.0
	(min)Single circulation time (min)	30-35	40-45	45-50	60-65

accessory products

Hot blast stoveLearn more

The hot blast heater is researched and designed according to the combustion characteristics of biomass, e.g., rice shell, straw and cavings, etc. After combustion, the clean air is generated through heat exchange. Then, the drying is conducted. It has superior performance and can use various renewable energies. Multiple granular or powdered fuels, e.g., rice shell, straw, sawdust and coal, can be fully combusted at semi-floating state. Its hot air efficiency can reach 70% above and it can realize automatic, semi-automatic production operation.

The application of biomass fuel not only protects the environment but also saves costs. Moreover, it is easy to operate and has excellent effect.
